Close the vehicle doors. In this instructable i will show you how to build your very own remote controlled central locking systemthere are a number of different central lockingalarm systems you can buy at your local automotive spare parts retailer but by using a fancy o.
Diagram Wiring Diagram For Central Locking Full Version Hd Quality Central Locking Wiringminds Apposrl It
Diagram Wiring Diagram For Central Locking Full Version Hd Quality Central Locking Wiringminds Apposrl It Get an instant quote for your central locking issue.
Universal remote central locking wiring diagram. What the central locking does is open all the doors at the same time. 12 volt relay wiring diagram collections of best relay wiring diagram 5 pin bosch endearing enchanting blurts. Converts your manual door locking into full remote central locking.
Hvac fan relay wiring diagram download. Start by disconnecting the battery to avoid any short circuits. Check the functionality of the central.
4 channel code learning remote controls you can add or replace up to 4 remotes with this intelligent learning code system we only guarantee our remotes transmitters to work with this system. Sometimes a doors lock actuator might. Attach the battery again.
This is done by inserting the key into the lock barrel on one door or using the remote control part of the key. Remote control with the motor wire of your central locking system the one that goes to the motor. 12 volt wiring diagram best 12v relay pin 5 and roc grp org in.
Make sure your vehicle key is not inside the car. Newer cars will usually be fitted with central locking as standard. Remember there are four wires to the master drive unit and only two to.
Also make sure that actuator is moving parallel to door lock bolt. If your existing key has chip inside you can. Weve got a chicken coop that i would like to connect the actuator to so we can open the latch from inside the house.
Central locking system installation manual actuators installation 1. 118 for product overview323 actual fitting of the kitthis is a review and installation guide for the cheapest remote locking system i found on eba. The items we have are a cfd universal car power door lock actuator 12 volt motor a docooler car remote central lock locking keyless.
Space inside the remote for your own transponder chip. Looking for some advice on wiring a car power door lock actuator and remote central locking keyless entry system to a 12volt power adapter. Install actuator in correct direction as shown in figures 1 a 1 b and figure 2.
Choose two holes inside of door or drill. Join the terminal connectors to the ends of all the wires leading to the drive units. Before installing the door panels again check the following.
Make sure that actuator will not block other moving parts inside of door screen and its mechanism. Remove door panels carefully 2. Automotive remote central locking.

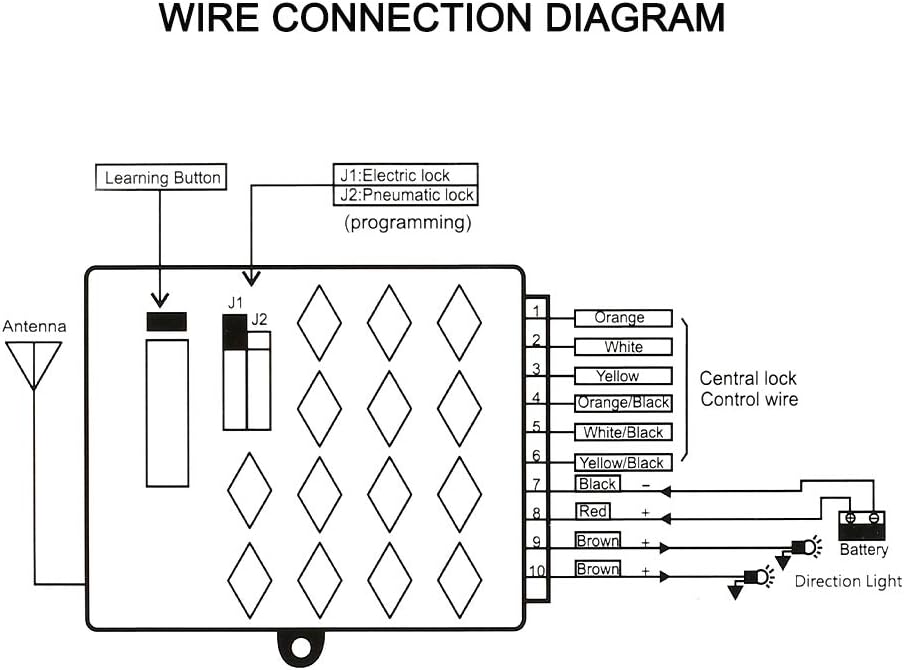

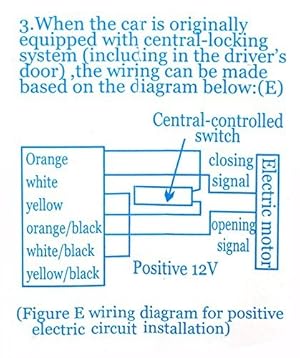

Central locking wiring diagram each drive unit has a small length of wiring attached to it which terminates in a multi plug. These are the feed and earth return for the entire door lock system. Best bosch relay wiring diagram 5 pole electrical outlet symbol 2018.
The master drive unit is identified by having two extra wires connected to it.
